Fiber Optic Cable Puller Packages

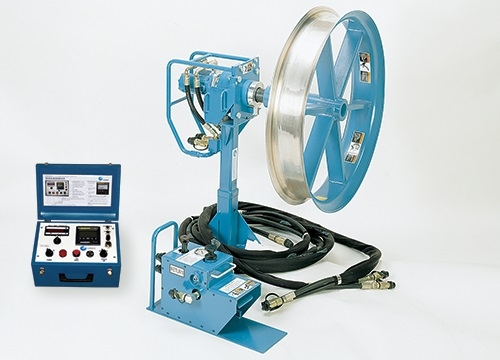

Fiber Optic Cable Puller

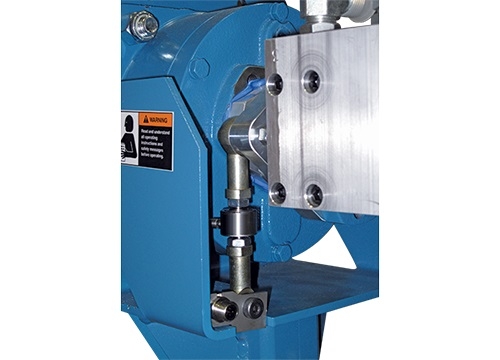

The Fiber Optic Cable Puller from Condux sets new standards for safe, accurate pulling of fiber optic cables. Only the Condux puller can offer load cell torque input for the most accurate tension measuring available. Unlike most hydraulic measuring systems, this system is not affected by changes in oil temperature, component age and power source. That means the Condux Fiber Optic Cable Puller does not need to be recalibrated under different weather conditions.
Standard Features
These pullers consist of a hydraulic motor, variable speed foot control, manual flow control valve for adjusting maximum speed and a manually adjustable pressure relief valve for adjusting the ultimate pull tension
Optional Features

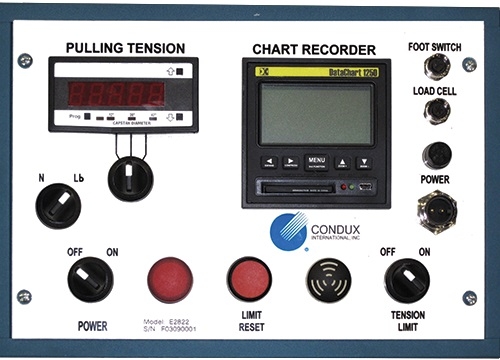

The Condux Fiber Optic Cable Puller features an optional electronic tension control system with adjustable digital load limits and a load cell tension measuring device with a paperless recorder and trend display, compact flash drive with 64MB flash card and USB interface.
Components
Condux Fiber Optic Pullers are multi-component products. Order a puller to fit your requirements with combinations of these components (for ordering information, see page 141). Components include:

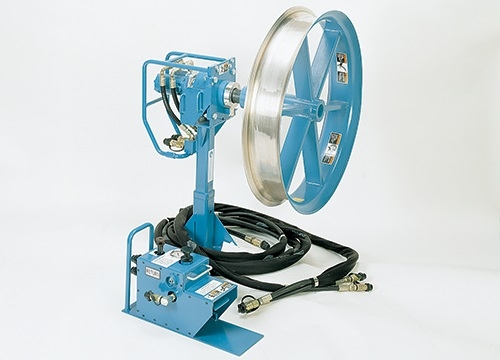

- Hydraulic puller mounted on a standard 21⁄2" (64 mm) square tube
- 30" (762 mm) diameter capstan
- Foot control / hydraulic control assembly
- Electronic control box with paperless recorder
- Hoses and cords to connect the puller to the foot control assembly and electronic control box
