REL-LP-K

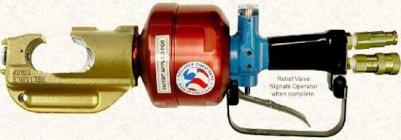

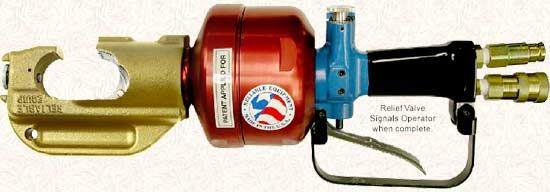

LOW PRESSURE HYDRAULIC 12 TON CRIMPING TOOL
12 TON, LOW PRESSURE, HYDRAULIC CRIMPING TOOL
Operate from any 1,500-2,500 psi hydraulic power source. NO H/P intensifier needed. Smaller than any equivalent 12 ton low pressure crimping tools currently available. Crimp up to 750 MCM Copper or Aluminum. Operate Open- or Closed - Center systems. Exchange head 12 ton Kearney Style to 12 ton Burndey "U" style without removing from service, using optional adapter and Burndy style head. 12 ton Burndy Style tool is also available. Crimping head swivels 360 degrees.
Specifications:
System: Open/Closed Center
Force: 24,000 lb.
Pressure: 1,500-2,500 psi.
Flow: 3-9 gpm.
Capacity: 1.5 inch (750 mcm Cu. and Al.)
