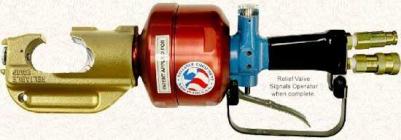

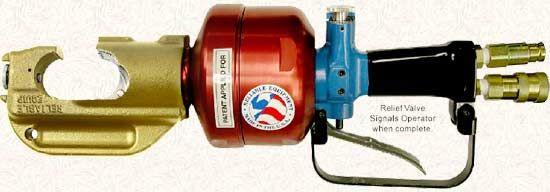

REL-LP-1.5
LOW PRESSURE HYDRAULIC 12 TON CRIMPING TOOL
12 TON, LOW PRESSURE, HYDRAULIC CRIMPING TOOL
Operate from any 1,500-2,500 psi hydraulic power source. NO H/P intensifier needed. Smaller than many equivalent 12 ton low pressure cimping tools currently available. Crimp up to 750 MCM Copper or Aluminum. Exchange head 12" ton "U" Style to 12 ton Kearney style without removing from service, using optional adapter and Kearney style head. 12 ton Kearney Style tool is also available. Crimping head swivels 350 degress on handle.
Specifications:
System: Open/Closed center
Force: 24,000 lb.
Pressure: 1,500 - 2,500 psi.
Flow: 3-9 gpm.
Capacity: 1.5 inch (750 mcm CU. and AL.)
