PVA 0021

Get a Quote

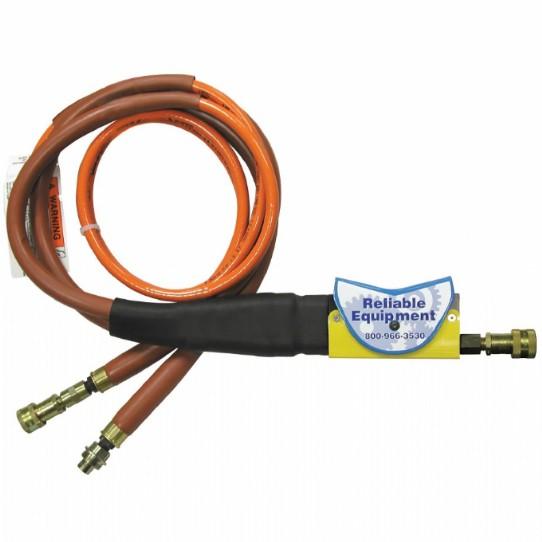

4 WAY CONTROL VALVE (Shown With 3VE3-96)

Open center 4-way, 3-position control valve for single-acting Crimping Heads and Cutters. It can be coupled directly to the tool or be used with high pressure hose for remote operation. The Pivot Style Control Valve may be operated with one hand, leaving the second hand free to control the head. Lever "locks" in the forward position for tool advance, and in the rear position for tool retraction. It automatically returns to center "OFF" position when rated tool pressure is reached. The Ground Dump Saftey Valve will activate if the return line is not connected. Protecting the flow into the atmosphere.



System : Single-Acting

Operating Pressure : 10,000 psi (690 bar)

Port Size (Inlet) : 1/4-18 NPTF

Port Size (Tool) : 1/4-18 NPSM

Couplers : Quick Connect
