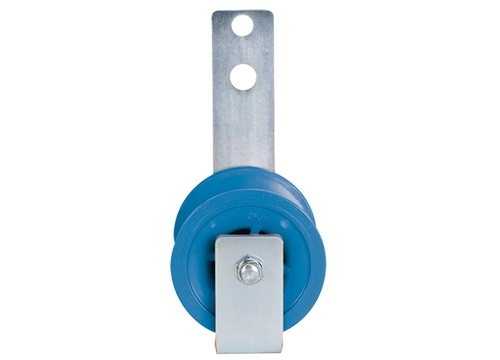

Pole Mount Cable Blocks

Get a Quote

 Specially designed for easy mounting and free-rolling required in figure-eight cable construction.

Quickly mounts to a 3-bolt strand clamp on a pole and allows pulling from pole to pole. Support a single coaxial, fiber optic or copper cable or aerial innerduct up to 2.75" (70 mm) outside diameter. Steel frame, with plastic or aluminum rollers.

Pole Mount Single Roller Cable Blocks may be equipped with a steel cable retainer to keep the cable or innerduct on the roller, even in low-tension situations. Replacement rollers are also available if necessary.

You Should Know

  • Cable Diameter
  • Max Cable O.D. 2.75" (70 mm)
  • Aluminum Sheave and Plastic Sheave Frames are not interchangeable
  • No poly-based rope should be used on plastic rollers. (If you are using poly rope, please order aluminum block rollers)
