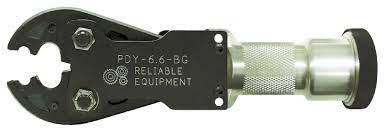

6 TON DOUBLE ACTING HYDRAULIC CRIMPING TOOL 1/ D3 SEAT & FIXED BG NOSE
This 6.6 ton crimping head installs a full range of connectors from #14 through 4/0. The PDY-6.6 will accept all existing Reliable R6 and "W" style dies. Spring die retainer pins assure positive die positioning. The forged steel head construction and butting jaw design will provide years of reliable, accurate performance under the extreme demands required by the power utility & construction industries. The PDY-6.6-BG features a fixed D-3 die seat and an additional permanent BG crimping configuration for standard field operations. The double acting system virtually eliminates die hang-up, when used in combination with PVA-122 directional control valve.
System: Double Acting
Capacity: #14 through 4/0
Crimp @ 10,000 psi: 6.6 ton
Max. Oper. Pressure: 10,000 psi
Weight: 7.6 lbs.
Length: 13.25 inch
Width: 4.5 in. (Open)
Couplers: Direct Connect
Dies Accepted: R6 and "W" Style
