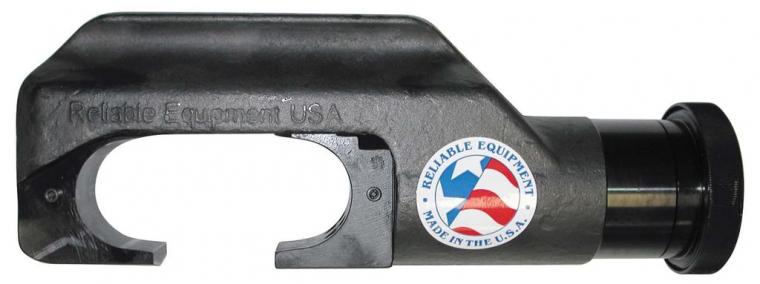

PDY-1524

The PDY-1524 Double Acting Hydraulic 15 ton Crimping Head. Easy, one-hand operation, and 360 degree rotating head allows easy orientation for percision control of crimping to improve saftey and reliability. Accepts 15 ton "P" style dies to easily crimp connector sizes up to 1,250 MCM-CU. With an optional PU Adapter this tool will also accept standard reliable "U" style dies as well as some dies from Aloca, Burndy, Blackburn, and Thomas & Betts. Designed for connectors requiring 15 ton crimping forces, and feature double-acting hydraulic power to eliminate die hang-up.

Weight: 16 lb. Length: 10.5" Width: 6"

Specificications:

System: Double-Acting

Jaw Capacity: 2"

Crimping force: 30,000 lb

Return force: 3,350 lb.

Oper. Pressure: 10,000 psi (690 bar)

Return Pressure: 5,000 psi (345 bar)

Couplers: Direct Connect

Dies Accepted: Y-46 or Equal

W/PU Adapter: Y-35 or Equal

Head Rotation: 360 degrees
