REL-1915 Hydraulic Pump

Get a Quote

115V or 230V Electric Single/Double Acting

The REL-1915 portable Electric High Pressure Hydraulic Power Pump. This intermittent duty two stage pumping system features a high pressure piston style pump, complimented by a low pressure pump for rapid tool advance. The 5/8 HP universal electric motor will operate from any 115V AC power supply.


  • 5/8 HP electric motor (5/8 Hp, 0.47kW, 3,300 RPM 115V or 230V AC 11 AMP draw)
  • Two stage pumping system
  • 10,000 PSI high pressure pump
  • Designed for use with single or double-acting remote tools
  • High-pressure relief valve
  • Factory filled oil reservoir (3 Quarts (.75 gallon)

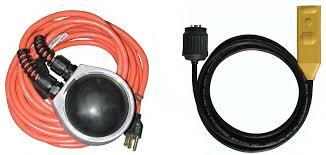

  • Hand control with 8 ft. cord
  • Carrying Handle
  • Carrying Case

Electrical Control: Body mount toggle switch and remote hand control with 8 ft. cord

Oil Delivery per Minute: 160 cubic inches at 100 PSI & 30 cubic inches at 10,000 PSI

Dimensions: 8"W x 8"D x 15"H

Weight: 35.72 lbs. with oil
