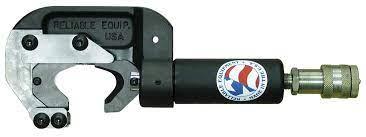

HP4707SA
SINGLE ACTING HYDRAULIC CABLE CUTTER
The HP4707SA single-acting hydraulic cable cutter is ideal for cutting individual conductors or communication cable. The HP4707SA will cut individual copper or aluminum conductors up to 1,000 MCM, and can even cut ACSR up to 954 MCM with the standard ACSR blade set. Simplicity, speed, and convenience make the HP4707SA cutter the perfect addition to any single acting tool inventory.
System: Single-Acting
Capacity (Jaw Opening): 1.25 in.
Force @ 10,000 psi (690 bar): 17,720 lb.
Return @ 5,000 psi (345 bar): 4,950 lb.
Max Operating Pressure: 10,000 psi ( 690 bar)
Max Return Pressure: 5,000 psi (345 bar)
Couplers: Direct Connect
Weight: 8.0 lb. , Length: 15 in. , Width: 4in.
