REL-510H

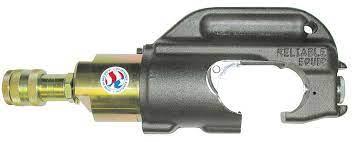

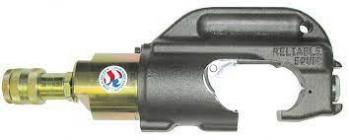

The REL-510H 12 ton Single Acting Hydraulic Crimping Head features a 1-1/2" jaw opening and accepts conductors and mid-span sleeve connections up to 750 MCM. Easy one-hand opersation, and a 360 degree rotating head allow easy head orientation for percision control of crimp, improving safety and reliability. Accepts standard Reliable R12 "U" style dies as well as some dies from Aloca, Blackburn, Thomas & Betts, Burndy, and Huskie. Designed for connectors requiring 12 ton crimping forces.

Weight: 11 lb. , Length: 212.25" , Width: 4.5"

Specifications:

System: Single-Acting

Jaw Capacity: 1-1/2 inch

Cimping Force: 24,000lb.

Oper. Pressure: 10,000 psi (690 bar)

Couplers: 3/8 inch Female

Dies Accepted: Y-35 or Equal

Head Rotation: 360 degrees
