PDY-510

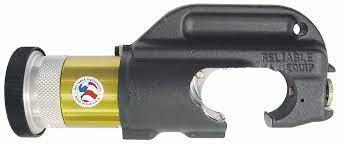

The PDY-510 12 ton Double Acting Hydraulic Crimping Head features easy one-hand operation, and 360 degree rotating head allows easy head orieatation for percision control of crimping to improve safety and reliability. Accepts standard Reliable "U" style dies as well as some dies from Aloca, Burndy, Blackburn, and Thomas & Betts. Designed for connectors requiring 12 ton crimping force, and feature double-acting hydraulic power to eliminate die hang-up.

Weight: 12lb. , Length: 10.75" , Width: 4,5"

Specifications:

System: Dpuble-Acting

Jaw Capacity: 1-1/2"

Crimping Force: 24,300 lb.

Return Force: 4,030 lb.

Oper. Pressure: 10,000 psi (690 bar)

Return Pressure: 5,000 psi (345 bar)

Couplers: Direct Connect

Dies Accepted: Y-35 or Equal

Head Rotaion: 360 degrees
