Products / 90° 3 Roller Inside Corner Guide

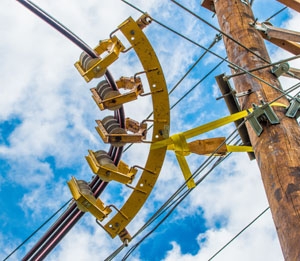

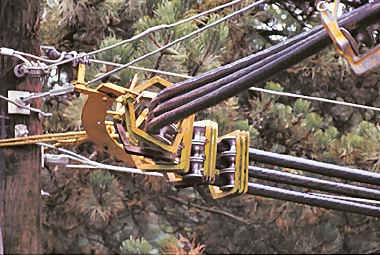

90° 3 Roller Inside Corner Cable Guide is often called the "Banana Bar", this guide consists of a curved steel frame that accommodates five 3 roller cable blocks that clamp to the frame. Each block can handle up to three 2-1/2 in. (64 mm) diameter cables.



90° 3 Roller Inside Corner Guide

  • Each end of the frame clamps onto the strand at either side of the pole. An eye bolt in the center of the frame allows for the securing of the frame to the pole. This 90° guide has a cable bending radius of 25 in. (625mm). All attaching screw vise clamps accept a 1 in. (25mm) lag wrench. The unit is painted safety yellow.
